Standard sync band width K W L
019=4.8MM 6 10 16.5
025=6.4MM 7.5 11.5 18
037=9.5MM 11 15 22
050=12.7MM 14 18 25

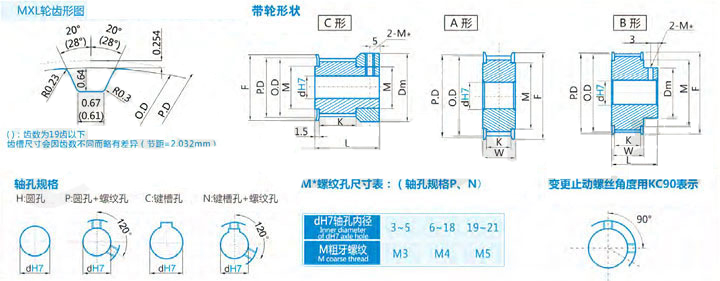

specification shape PD OD Outside diameter of rib Inside diameter of flange Hub diameter Dh7
A B|C
H C|N H P C|N
14MXL C|A|B 9.06 8.552 12 6 12 3|4 3|4 3|4
15MXL 9.7 9.192 12 6 12 3|4 3|4 3|4
16MXL 10.35 9.842 14 7 14 3|4|5 3|4|5 3|4|5
17MXL 11 10.492 14 7 14 3|4|5 3|4|5 3|4|5
18MXL 11.64 11.132 14 7 14 3|4|5 3|4|5 3|4|5
19MXL 12.29 11.782 14 7 14 3|4|5 3|4|5 3|4|5
20MXL 12.94 12.432 18 11 9 3~6 4~6 4|5
21MXL 13.58 13.072 18 11 9 3~6 4~6 4|5
22MXL 14.23 13.722 18 11 9 3~6 4~6 4|5
23MXL 14.88 14.372 20 12 11 3~8 4~7 3~7
24MXL 15.52 15.012 20 12 11 3~8 4~7 3~7
25MXL 16.17 15.662 20 12 11 3~8 4~7 3~7
26MXL 16.82 16.312 23 13 12 3~9 4~8 3~8
27MXL 17.46 16.952 23 13 12 4~9 4~8 4~8
28MXL 18.11 17.602 23 13 12 4~9 4~8 4~8
30MXL 19.4 18.892 25 16 14 4~11 8 4~10 4~8
32MXL 20.7 20.192 25 16 14 4~11 8 4~10 4~8
34MXL 21.99 21.482 25 16 14 4~11 8 4~10 4~8
36MXL 23.29 22.782 28 18 16 5~13 8~11 5~12 5~10 8
38MXL 24.58 24.072 28 18 16 5~13 8~11 5~12 5~10 8
40MXL 25.87 25.362 31 20 18 5~15 8~13 5~14 5~10 8~10
42MXL 27.17 26.662 31 20 18 5~15 8~13 5~14 5~10 8~10
44MXL 28.46 27.952 33 22 20 5~18 8~16 5~16 5~12 8~12
46MXL 29.75 29.242 33 22 20 5~18 8~16 5~16 5~12 8~12
48MXL 31.05 30.542 35 24 22 5~20 8~18 5~18 5~13 8~13
50MXL 32.34 31.832 35 24 22 5~20 8~19 5~18 5~13 8~13
60MXL 38.81 38.302 44 32 28 5~27 8~25 5~24 5~20 8~16
72MXL 46.57 46.062 52 38 30 5~35 8~33 5~26 5~21 8~18
Note: The above is the company's standard reference model parameters, the specific model according to your requirements customized processing. Contact customer service: 0574-63786986
