Standard sync band width K W L30 L30
15=15MM 16.5 22.5 38 40
20=20MM 21.5 27.5 43 45
25=25MM 26.5 32.5 48 50
30=30MM 31.5 36.5 52 54
40=40MM 41.5 46.5 62 64
50=50MM 52 57 73 75

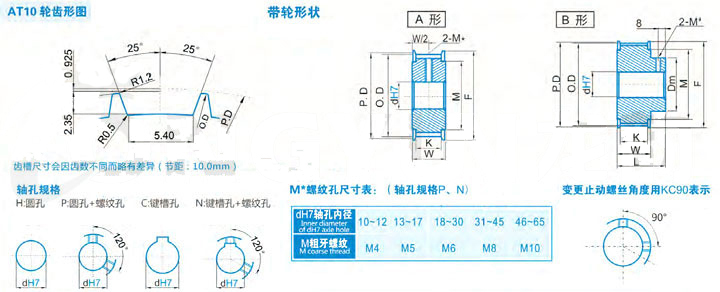

specification shape P.D O.D F M Dm dH7
Atype Btype
H P C|N H P C|N
AT10*14 A|B 44.56 42.71 48 36 34 10~27 10~26 10~26 10~27 10~22 10~20
AT10*15 47.75 45.90 51 36 35 10~28 10~26 10~26 10~28 10~23 10~20
AT10*16 50.93 49.08 57 41 35 12~32 12~30 12~30 12~32 12~27 12~22
AT10*18 57.30 55.45 60 46 35 12~37 12~30 12~30 12~36 12~30 12~25
AT10*20 63.66 61.81 67 50 40 12~42 12~40 12~40 12~42 12~35 12~29
AT10*22 70.03 68.18 80 60 40 12~52 12~48 12~48 12~46 12~38 12~32
AT10*24 76.39 74.54 87 68 50 12~59 12~50 12~50 12~56 12~46 12~40
AT10*25 79.58 77.73 87 68 50 12~59 12~50 12~50 12~59 12~49 12~43
AT10*26 82.76 80.91 87 68 50 12~59 12~50 12~50 12~59 12~49 12~43
AT10*28 89.13 87.28 94 74 60 12~67 12~57 12~50 12~66 12~56 12~48
AT10*30 95.49 93.64 105 84 60 12~76 12~65 12~50 12~71 12~61 12~50
AT10*32 101.86 100.01 112 90 60 20~80 20~65 20~50 20~80 20~65 20~50
AT10*36 114.59 112.74 123 101 60 20~80 20~65 20~50 20~80 20~65 20~50
AT10*40 127.32 125.47 135 115 60 20~80 20~65 20~50 20~80 20~65 20~50
AT10*44 140.06 138.21 152 121 60 20~80 20~65 20~50 20~80 20~65 20~50
AT10*48 152.78 150.93 160 140 60 20~80 20~65 20~50 20~80 20~65 20~50
Note: The above is the company's standard reference model parameters, the specific model according to your requirements customized processing.
