Standard sync band width K W L44 L44
15=15MM 17 22 37 42
25=25MM 28 33 48 53
30=30MM 33 38 53 58
40=40MM 44 49 64 69

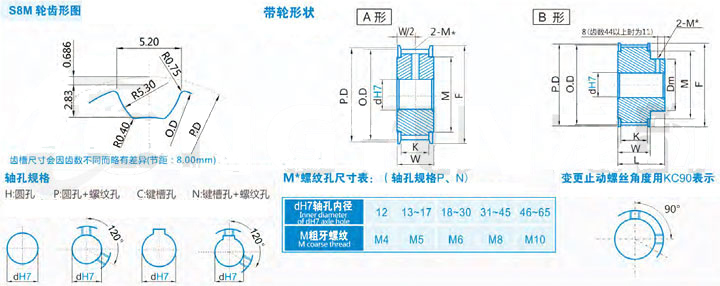

specification shape P.D O.D F M Dm dH7
Atype Btype
H P C|N H P C|N
S8M*18 A|B 45.84 44.47 51 36 32 12~28 12~26 12~26 12~28 12~22 12~20
S8M*19 48.38 47.01 55 39 35 12~32 12~28 12~28 12~321 12~25 12~20
S8M*20 50.93 49.56 57 41 36 12~32 12~30 12~30 12~32 12~26 12~22
S8M*21 53.47 52.10 60 46 40 12~37 12~32 12~32 12~36 12~30 12~24
S8M*22 56.02 54.65 60 46 41 12~37 12~34 12~34 12~37 12~30 12~25
S8M*24 61.12 59.75 67 50 46 12~42 12~40 12~40 12~42 12~34 12~28
S8M*25 63.66 62.29 70 55 48 12~48 12~40 12~40 12~44 12~36 12~28
S8M*26 66.21 64.84 74 53 51 14~50 14~45 14~45 14~47 14~39 14~31
S8M*28 71.30 69.93 80 60 55 14~52 14~48 14~48 14~51 14~43 14~35
S8M*30 76.39 75.02 86 66 60 14~59 14~50 14~50 14~56 14~46 14~38
S8M*32 81.49 80.12 87 68 63 14~59 14~55 14~50 14~59 14~49 14~45
S8M*34 86.58 85.21 94 74 70 16~67 16~60 16~50 16~66 16~56 16~48
S8M*36 91.67 90.30 99 78 75 16~72 16~65 16~50 16~71 16~61 16~50
S8M*38 96.77 95.40 105 84 80 16~76 16~65 16~50 17~76 16~65 16~50
S8M*40 101.86 100.49 112 90 85 20~80 20~65 20~50 20~80 20~65 20~50
S8M*44 112.05 110.68 119 100 90 20~80 20~65 20~50 20~80 20~65 20~50
S8M*48 122.23 120.86 131 111 100 20~80 20~65 20~50 20~80 20~65 20~50
S8M*50 127.32 125.95 135 115 100 20~80 20~65 20~50 20~80 20~65 20~50
S8M*60 152.79 151.42 160 140 100 20~80 20~65 20~50 20~80 20~65 20~50
S8M*72 183.35 181.98 190 161 100 20~80 20~65 20~50 20~80 20~65 20~50
Note: The above is the company's standard reference model parameters, the specific model according to your requirements customized processing.
